Description

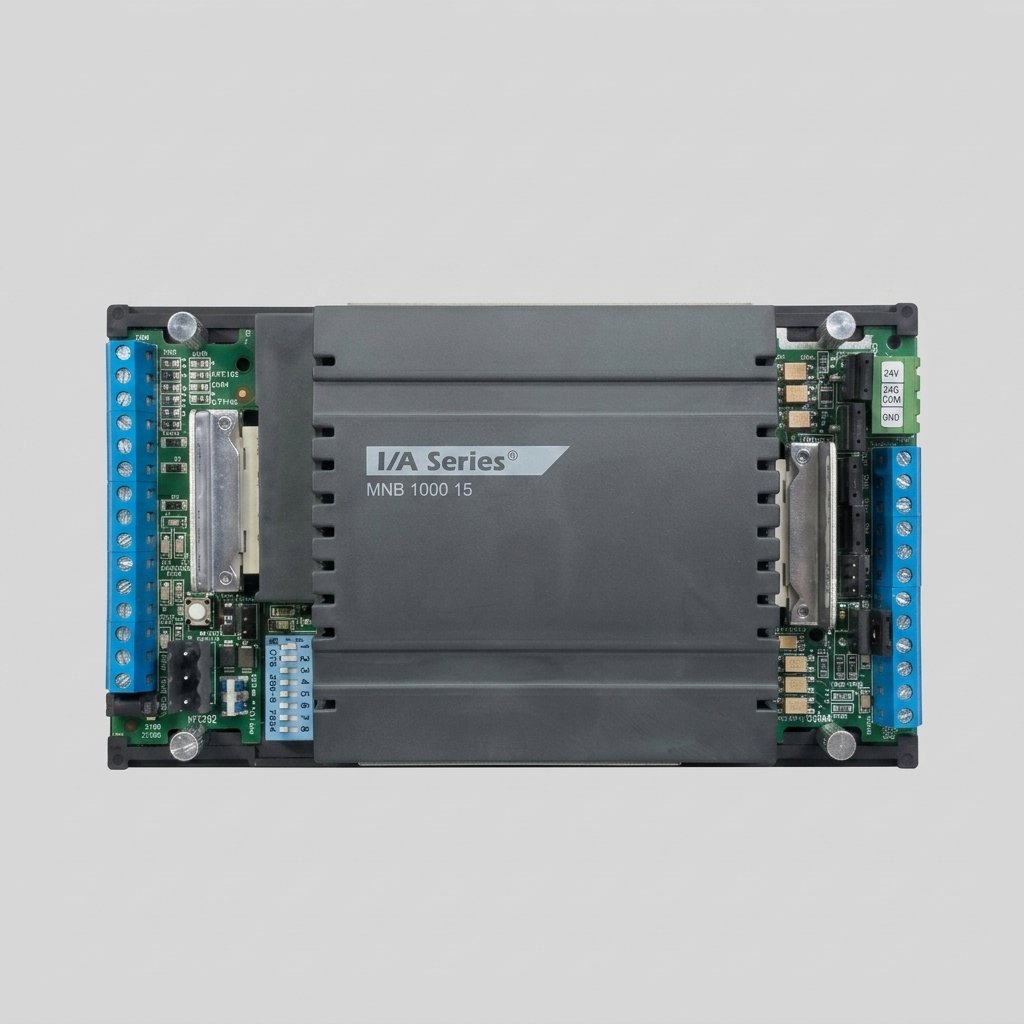

Expand and optimize your building automation system with this authentic MicroNet BACnet Remote I/O Module, model MNB-CNTLR-15. This high-performance subassembly is specifically engineered for use with the MNB-1000-15 system, providing a robust interface for remote monitoring and control. This module is built for efficiency, facilitating comprehensive data acquisition via a multitude of connection points, including extensive blue terminal strips, dedicated communication headers, and rugged heat sinks. Ensure precision and reliability in your industrial or commercial environment with this certified, European-manufactured controller subassembly.
Key Features
-
MicroNet BACnet Remote I/O: Provides flexible, reliable digital and analog input/output connectivity for automation networks.
-
System Specificity: Engineered as a high-performance subassembly designed only for integration with the MNB-1000-15 base system.
-
Robust Connectivity: Features multiple heavy-duty blue screw terminal strips and specialized communication pin headers for expansive device integration.
-
Wide Temperature Tolerance: Operations continue reliably across a wide ambient temperature range, rated from -40°C to 60°C.
-
Efficient Thermal Management: Integrated with a full-length metallic heat sink structure for superior cooling of internal components.
-
Certified Quality & Safety: Fully certified with CE (European Conformity), UL Listed (Underwriters Laboratories, Open Energy Management Subassembly), and N1831 markings.
Specifications
-
Model Number: MNB-CNTLR-15
-
Product Type: MicroNet BACnet Remote I/O Module Subassembly
-
Required Base System: MNB-1000-15 (Must be used only with this model)
-
Circuit Class: Class 2 IN/OUT
-
Power Input: 24 VAC, 16 VA, 50/60 Hz
-
IO Rating: 12 VA @ 24 VAC Pilot Duty
-
UI (Universal Input) Rating: 5 VDC
-
Output Voltage (Max): S-LK, VO, IO: 16 VDC Max.
-
Operating Ambient Temperature: -40°C to 60°C
