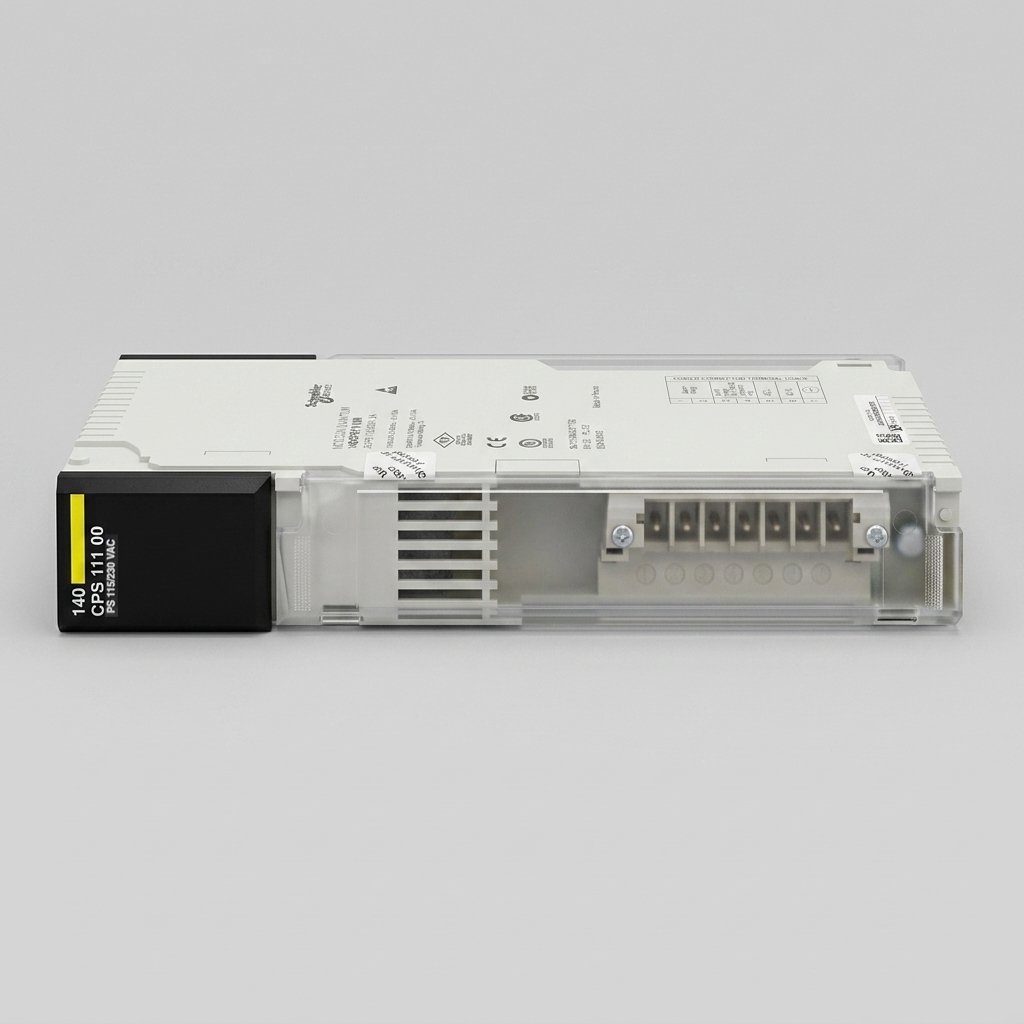

The Schneider Electric 140 CPS 111 00 is a robust power supply module from the respected MODICON Quantum automation line, designed to provide reliable power to distributed control system components. Engineered for versatility, this module accepts a dual-voltage input of either 115 VAC or 230 VAC (switch-selectable), with a total output current rating of 3A. Featuring a transparent, ventilated protective cover, it allows for visual inspection of the internal terminal block and features a labeled terminal connector with 7 connection points. The compact, modular design ensures seamless integration into the Modicon Quantum backplane and networking systems. This module is essential for applications requiring a deterministic and reliable power solution in industrial environments.

Key Features

Official MODICON Quantum Module: A critical component from Schneider Electric’s MODICON Quantum automation platform, ensuring trusted compatibility.
Dual-Voltage Input: Flexible operation with selectable 115 VAC or 230 VAC input capability.
3A Output Rating: Delivers a total output current of 3A to support multiple distributed modules.
Visual Terminals: Features a transparent front cover that allows for immediate inspection of the 7-pin terminal block connections.
Ventilated Design: Includes integrated air slots beneath the clear cover for enhanced thermal management.
Clear Labeling: Detailed specifications and a terminal usage diagram are printed directly on the module for quick reference and maintenance.
Made in France: Guaranteed manufacturing quality and origin.

Specifications

Brand: Schneider Electric
Model Number: 140 CPS 111 00 (also visible as 140CPS11100 on the back label)
Series: MODICON Quantum
Function: Power Supply Module
Input Voltage: 115 / 230 VAC (Nominal)
Input Frequency: 50/60 Hz
Input Current:
- 115 V / 0.2A 50/60 Hz
- 230 V / 0.1A 50/60 Hz
Output Voltage: 5.1V (Total)
Output Current: 3A (Total)
Terminal Connector: 7-Pin Connector
Terminal Labeled Usage:
- 1: Alarm Relay
- 2: Alarm Relay
- 3: Jumper for 115VAC Operation (specific instructions visible)
- 4: AC L
- 5: AC N
- 6: PE (Ground Symbol)
- 7: PE (Ground Symbol)
Certifications/Logos: CE, UL Listed, FM Approved (Class I Div 2), CSA, N998.
Made in France
